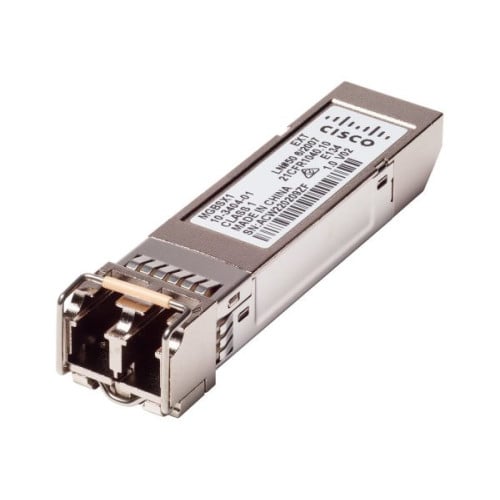

[MGBSX1] Cisco Gigabit Ethernet SX Mini-GBIC SFP Transceiver, Multi-Mode, 550m

Name: [MGBSX1] Cisco Gigabit Ethernet SX Mini-GBIC SFP Transceiver, Multi-Mode, 550m
Brand: Cisco
SKU: MGBSX1
Price: 4000 THB
Availability: InStock

SKU: MGBSX1

ย้อนกลับไปหน้ารายการสินค้า

Accessories Cisco + new In Stock

[MGBSX1] Cisco Gigabit Ethernet SX Mini-GBIC SFP Transceiver, Multi-Mode, 550m

Cisco MGBSX1 Gigabit Ethernet SX Mini-GBIC SFP module for short-reach 1G connections over multi-mode fiber up to 550m. Compatible with Cisco Catalyst and Small Business switches.

การรับประกันและบริการหลังการขาย

Warranty DOA 90 Days

ราคาโดยประมาณ

฿5,000.00 ฿4,000.00

ขอใบเสนอราคาด่วน สอบถามทาง Line

Cisco MGBSX1 SFP: 1 Gigabit Ethernet short-range transceiver for multi-mode fiber connections
1000BASE-SX standard with 850nm VCSEL laser for multi-mode fiber links up to 550m (OM2)
Compact Mini-GBIC SFP form factor compatible with Cisco Catalyst small business switches
Hot-pluggable: Insert or remove without powering down the switch
LC duplex connector, compatible with standard multi-mode fiber patch cables
Digital Optical Monitoring (DOM) for real-time TX/RX power and link diagnostics
Ideal for server-to-switch, switch-to-switch connections within buildings or rooms
Compatible with Cisco Catalyst 2960, 3560, 3750 and Small Business SG series switches

Feature	[MGBSX1] Cisco Gigabit Ethernet SX Mini-GBIC SFP Transceiver, Multi-Mode, 550m	MGBLH1
Speed	1 Gbps	1 Gbps
Fiber Type	Multi-Mode	Single-Mode
Max Distance	550m	40 km
Wavelength	850 nm	1310 nm
Use Case	In-building	Long-haul / campus

Interface Type	SFP Mini-GBIC
Speed	1 Gbps (1000BASE-SX)
Fiber Type	Multi-Mode Fiber (MMF)
Connector	LC Duplex
Wavelength	850 nm
Max Distance (OM1)	220 m
Max Distance (OM2)	550 m
Laser Type	VCSEL
DOM Support	Yes
Standard	IEEE 802.3z 1000BASE-SX
Power Consumption	< 0.8 W
Operating Temperature	0°C to 70°C
Compatibility	Cisco Catalyst 2960/3560/3750/SG series

[MGBSX1] Cisco Gigabit Ethernet SX Mini-GBIC SFP Transceiver, Multi-Mode, 550m

[MGBSX1] Cisco Gigabit Ethernet SX Mini-GBIC SFP Transceiver, Multi-Mode, 550m
