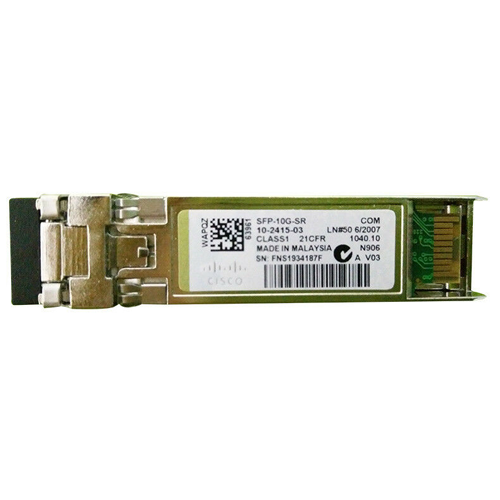

[SFP-10G-SR=] Cisco 10GBASE-SR SFP+ Module, Multi-Mode, 300m

Name: [SFP-10G-SR=] Cisco 10GBASE-SR SFP+ Module, Multi-Mode, 300m
Brand: Cisco
SKU: SFP-10G-SR=
Price: 17000 THB
Availability: InStock

SKU: SFP-10G-SR=

ย้อนกลับไปหน้ารายการสินค้า

Accessories Cisco + new In Stock

[SFP-10G-SR=] Cisco 10GBASE-SR SFP+ Module, Multi-Mode, 300m

Cisco 10GBASE-SR SFP+ Module for short-range 10 Gigabit Ethernet connections over OM3/OM4 multi-mode fiber. Delivers 10G performance up to 300m distance.

การรับประกันและบริการหลังการขาย

Warranty DOA 90 Days

ราคาโดยประมาณ

฿20,000.00 ฿17,000.00

ขอใบเสนอราคาด่วน สอบถามทาง Line

Cisco 10GBASE-SR SFP+: Industry-standard short-range optical module for Cisco Catalyst switches
Supports 10 Gigabit Ethernet over OM3 multi-mode fiber (max 300m) or OM4 fiber (max 400m)
LC duplex connector with 850nm VCSEL laser for reliable multi-mode fiber transmission
Hot-pluggable SFP+ form factor for live insertion without switch restart
Digital Optical Monitoring (DOM) for real-time link health and power diagnostics
Compatible with Cisco Catalyst 9000, 3000, 4000, 6000 series and Nexus platforms
IEEE 802.3ae 10GBASE-SR compliant, RoHS 6 certified
Operating temperature: 0°C to 70°C commercial, suitable for data center environments

Feature	[SFP-10G-SR=] Cisco 10GBASE-SR SFP+ Module, Multi-Mode, 300m	SFP-10G-LR=
Speed	10 Gbps	10 Gbps
Fiber Type	Multi-Mode (MMF)	Single-Mode (SMF)
Max Distance	300m (OM3)	10 km
Wavelength	850 nm	1310 nm
Use Case	Within building (<300m)	Campus backbone / inter-building
Cost	Lower	Higher (SMF laser)

Interface Type	SFP+ (Small Form-factor Pluggable Plus)
Speed	10 Gbps
Fiber Type	Multi-Mode Fiber (MMF)
Connector	LC Duplex
Wavelength	850 nm
Max Distance (OM3)	300 m
Max Distance (OM4)	400 m
Laser Type	VCSEL (Vertical Cavity Surface Emitting Laser)
DOM Support	Yes
Standard	IEEE 802.3ae 10GBASE-SR
Power Consumption	< 1.0 W
Operating Temperature	0°C to 70°C
Compatibility	Cisco Catalyst 9000/3000/4000/6000, Nexus
